A great choice for applications that require accuracy and consistency with every cycle. By delivering a precise amount of fluid, these fixed dispense pumps offer a simple solution for reliable and repetitive dispensing tasks.

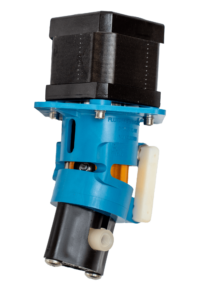

STF Pump
Micro Volume Adjustment Dispensing Pump
The STF is an advanced miniaturized fluidic system designed to control small volumes of fluid at the microscale level for a broad range of applications. It is currently available in standard drive configurations ranging from 5 μl through 400 μl in 1 μl increments.
Max Dispense Volume: 400 µL
Motor Speed Range: Rotational up to 1000 rpm
Motor Frame Rotational: NEMA 17 (43mm)

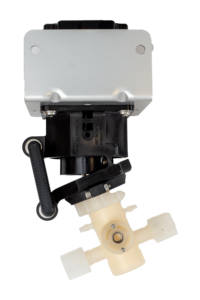

STFQ Pump
Micro Volume Adjustable Displacement Dispenser Pump
The STFQ is an advanced miniaturized fluidic system designed to control small volumes of fluid at the microscale level for a broad range of applications. It is currently available in standard drive configurations ranging from 250 µL through 1.25 mL in 1 µL increments.
Max Dispense Volume: 1250 µL
Motor Speed Range: Rotational up to 1000 rpm
Motor Frame Rotational: NEMA 23 (57mm)
