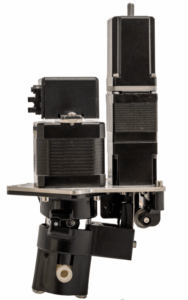

The FENYX Variable Dispense Pump combines the function of priming, flushing, and dispensing into one device, which provides accurate and repeatable dispense volumes of 1 to 400 µL in a small lightweight package.
Product Details:
The innovative, low-profile design offers unparalleled accuracy and precision with an electrical and mechanical upgrade that can dispense multiple volumes with the same pump. The patented FENYX Variable Dispense Pump is available in three configurable options1 and is an ideal solution for OEM Medical and Life Sciences Markets.
Variable Dispense Pump

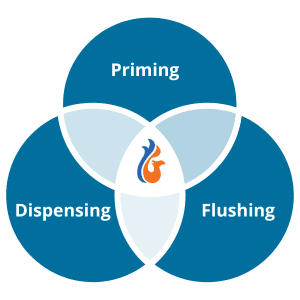

Self-priming, dispensing, and flushing functions
Reduces system total cost of ownership
The patented FENYX Variable Dispense Pump combines the function of priming, flushing, and dispensing into one device, which provides accurate and repeatable dispense volumes of 1 to 400 µL in a small lightweight package.
Variable Dispense Pump
The patented FENYX Variable Dispense pump offers non-contact capabilities down to 4µL.
Eliminate the need for probe tip changes and washing, resulting in streamlined accuracy, efficiency, and precision.
Product specifications:
Dispense Volume Range: 0.75- 400 μl/rev
Flow Rate Range: 0.00075-400 mL/min
Calibrated Flow Rate:
Motor Type:
Rotational: NEMA 17 (43mm)
Linear: NEMA 11 (28mm)
Speed Motors:
Rotational: Up to 1000 rpm
Linear: Up to 1900 rpm
Variable Speed Motors:
Operating Temperature: 0°C to 50°C
Operating Pressure Range: 0-30 psig (0-2.1 bar)
